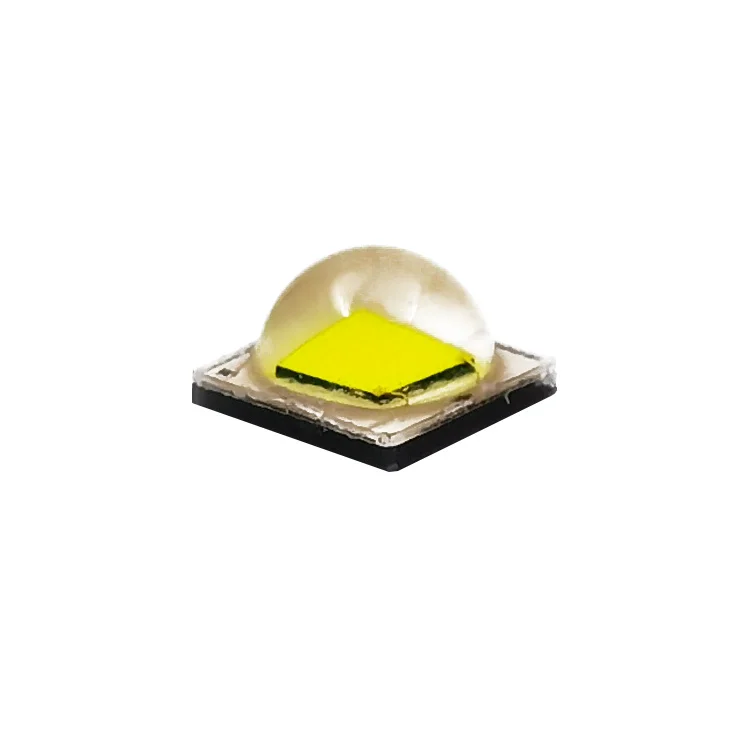

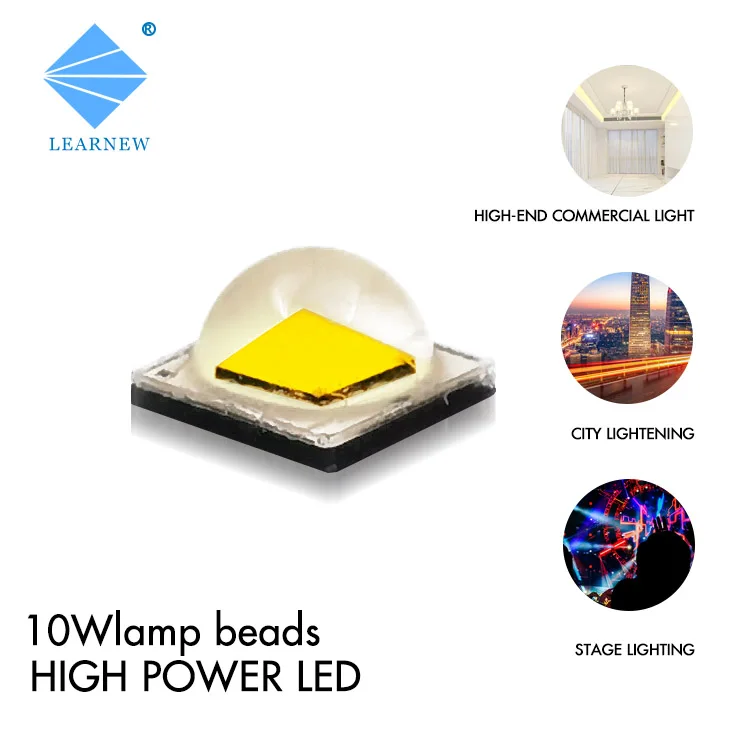

High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting

Brand Name : Learnew

Place of Origin : Guangdong, China

MOQ : 1000

Power : 10W

Luminous Flux : 1200-1500LM

Luminous Efficacy : 120 lm/W

Input Voltage : 3.0-3.4V

Max Current : 3000mA

Color Temperature : 2700K-10000K

Viewing Angle : 120°

Chip Material : Ingan

Size : 5.0*5.0mm

Lens Type : Zoom Lens

Operating Temperature : -20 - 100℃

Storage Temperature : -20 - 80℃

Lifespan : 10000 hours

Optical Attenuation : 0.01%

Substrate Material : Ceramic

Contact Now

Products Description
We accept OEM and ODM service to customized any type of LED CHIP.

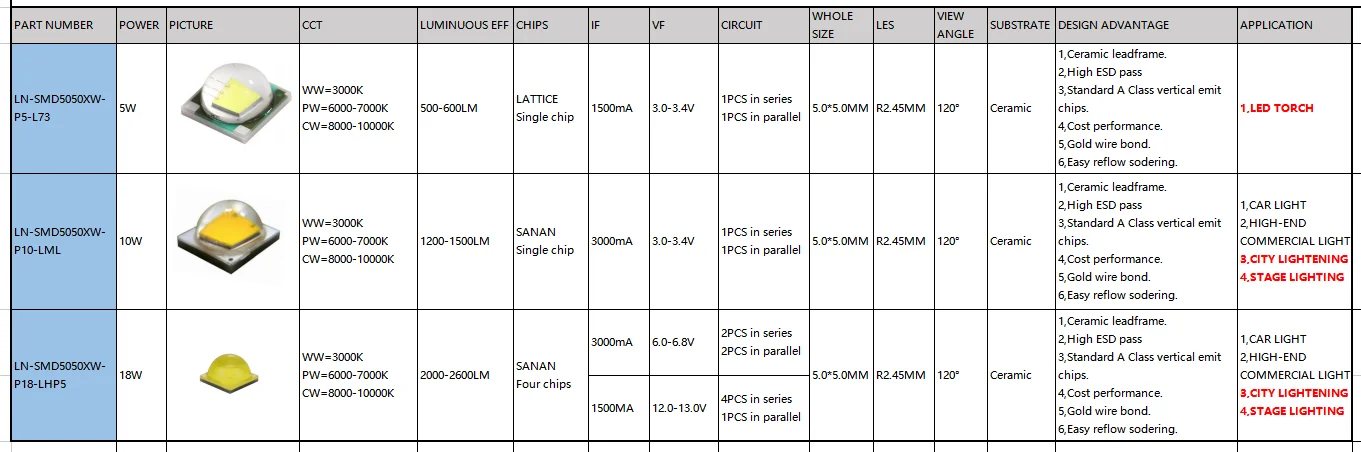

High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
POWER
10W
CCT
WW=3000K PW=6000-7000K CW=8000-10000K
LUMINUOUS EFF
1200-1500LM
SUBSTRATE
Ceramic
APPLICATION
1,CAR LIGHT 2,HIGH-END COMMERCIAL LIGHT 3,CITY LIGHTENING 4,STAGE LIGHTING
Current
3000mA

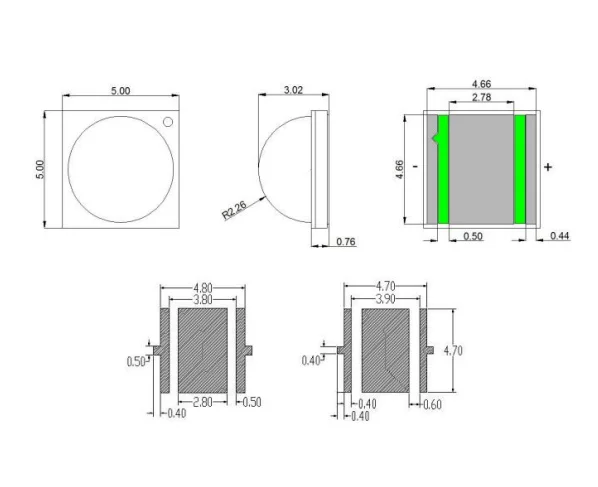

Whole Size
5.0*5.0MM
Voltage
3.0-3.4V
Design Advantage
1,Ceramic leadframe. 2,High ESD pass 3,Standard A Class chips. 4,Cost performance. 5,Gold wire bond. 6,Easy reflow sodering
Circuit
1S1P
LES
R2.45MM
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
Application

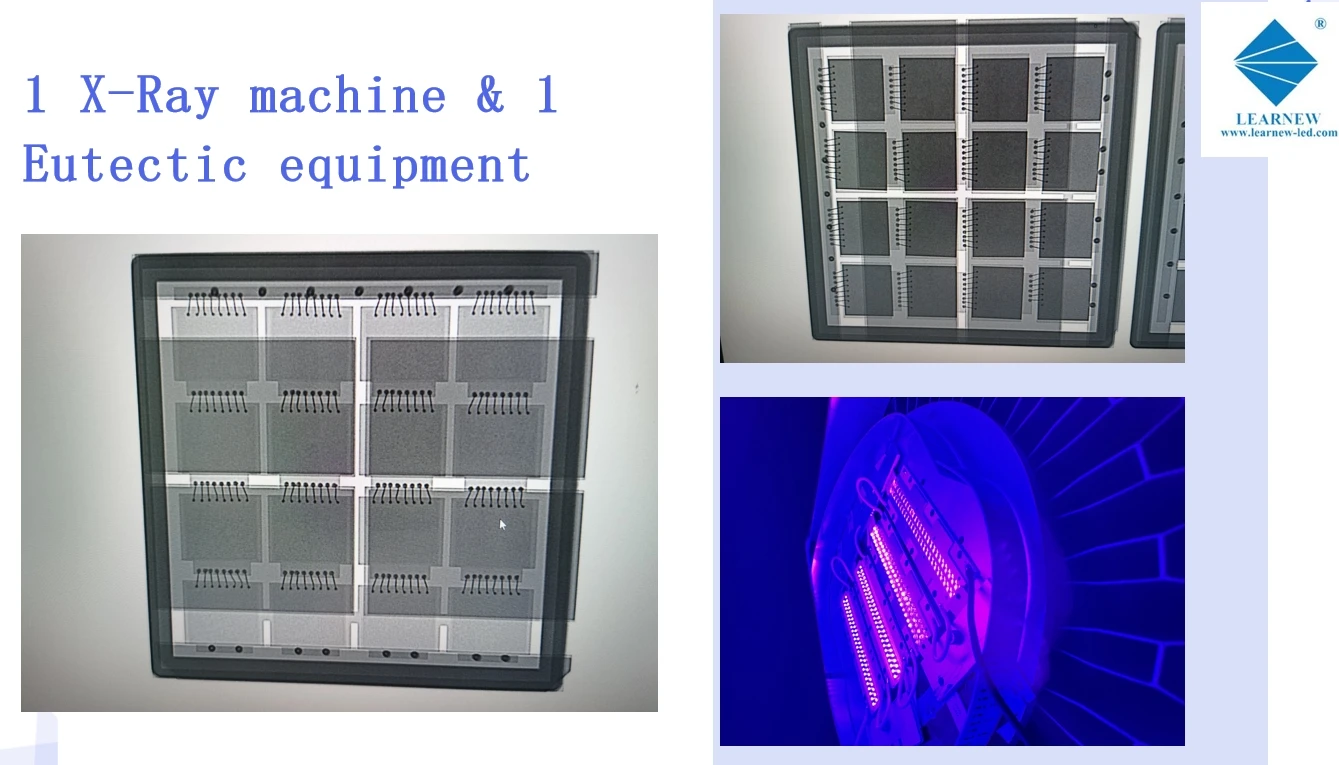

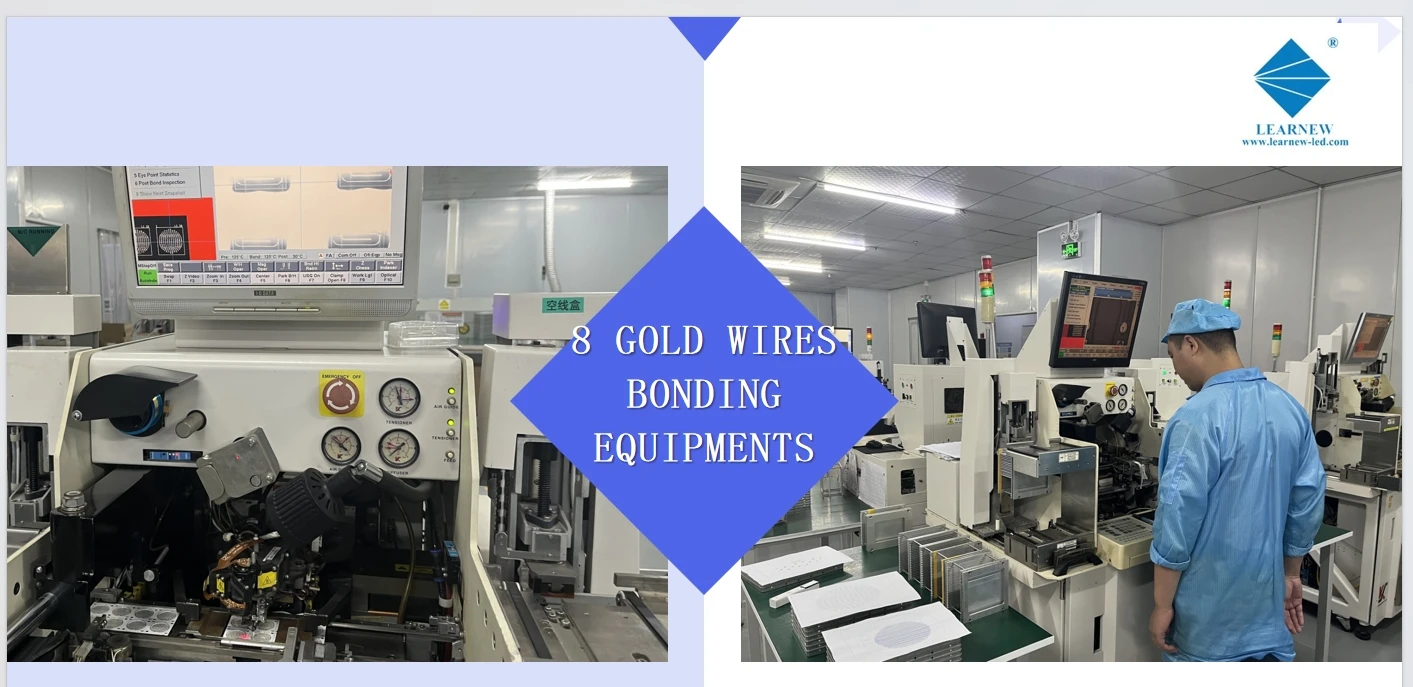

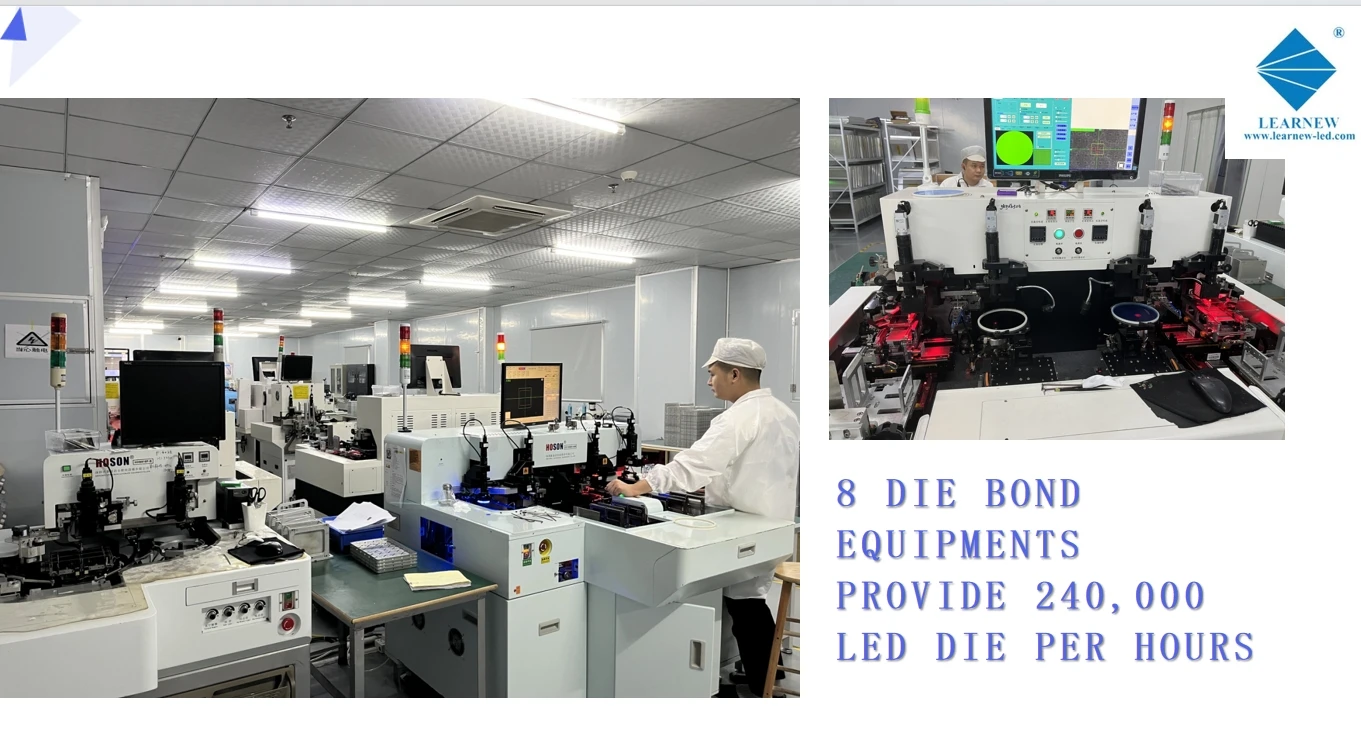

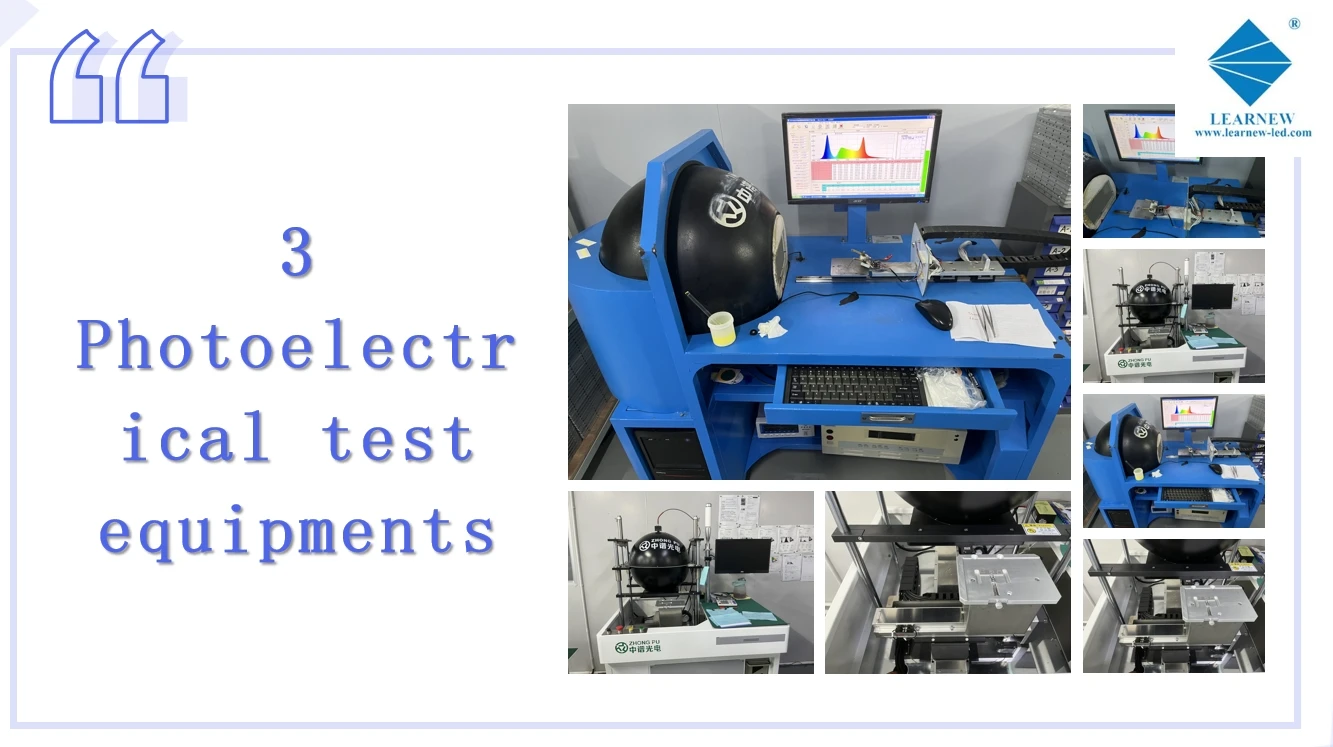

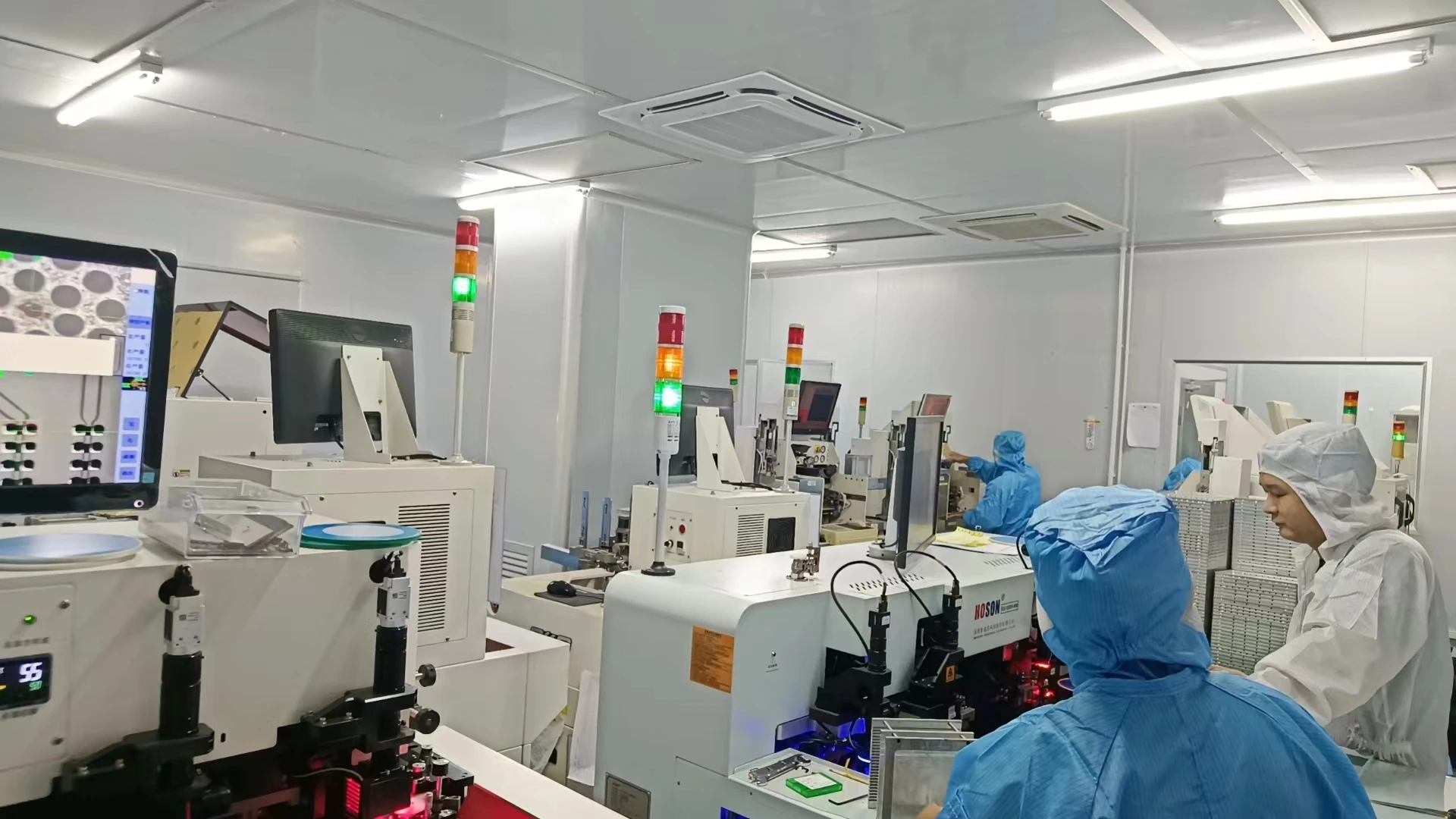

Factory introduction
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
Product Packaging
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
CERTIFICITIONS
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
